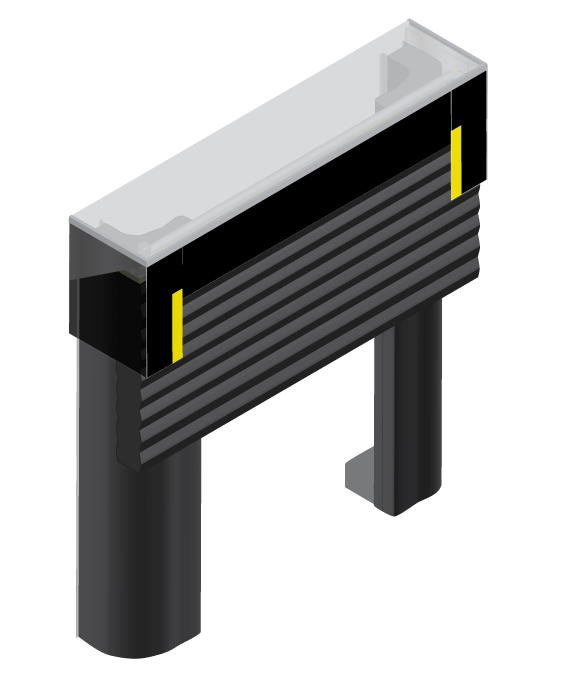

SL700 Inflatable Dock Shelter

Scotlifts can supply and fit the SL700. The SL700 inflatable shelter offers an optimum seal but with no side projection beyond the dock bumpers when deflated. When the airbags are inflated they are designed to wrap around the side of the vehicle and is ideal where vehicles may have a tail lift or slide over doors.

The standard size is 3400mm wide x 3700mm high x 900mm projection, however this can be changed depending on the vehicles using the bay. Scotlifts airbags are manufactured from 1000d cordura type material which is a hardwearing, woven nylon coated fabric with a high tear resistance.

The fan used is normally a three phase centrifugal fan that fully inflates the bags between 10-20 seconds. Once the fan is deactivated the bags will return to their deflated position behind the storage curtains by a counter balance weight system.

Options

• Various sizes
• Ground level
• Other colours available
• Your logo at no extra cost
• Single phase fan
• Corner pads
