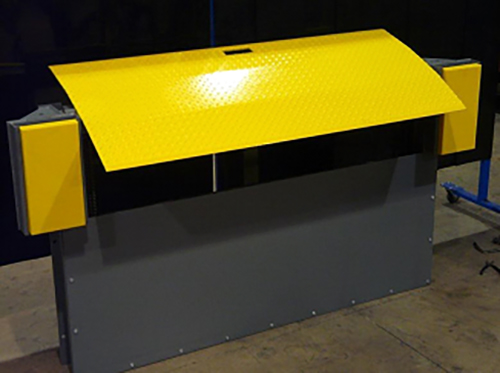

Our dock levellers are well-designed solutions for precisely compensating the differences in height between various lorry floors and ramps. Using a dock leveller, the load can be moved in or out of the lorry in a single horizontal movement.
A sturdy steel construction with anti-twist platform easily compensates for lorry tilting, even if the load is not distributed evenly.
Reliable hydraulics with 2 lifting cylinders and a cylinder for the lip is the right choice for any situation, easy to operate and, above all, safe: these dock levellers are equipped with automatic emergency stop valves in the lifting cylinders. They secure the dock leveller right away. This is important, for example, if a lorry drives away while a load is still on the platform.
For every loading situation, we offer the right solution for efficient loading and unloading. You can obtain detailed consultation from your loading technology specialist. For more information, please see the adjacent catalogue.
Plate Size : 1830 x 760mm
Working range: Max possible 100mm (Max recommended 75mm)
Overall Width : 2350mm
Load Capacity : 5000kg
Projection from Dock : 300mm
Effective Lip Range : 255mm
Lifting force : 16kg approx
Unit weight : 355kg
Other plate widths available where required
Alternative bumper arrangements
Alternative RAL colours
Enquires - Tel 01389609443 Email Service@scotlifts.co.uk
